FAST Playfield Interchange Board¶
Part Number: FP-PWR-0030
This product is not yet released
This documentation is for a product that is not yet released. Final details may change.
The FAST Playfield Interchange Board mounts to the rear of your playfield and provides a distribution point for playfield power and data connections, as well as a convenient location to quickly disconnect your playfield to completely remove it from your machine.
Input connections from backbox¶
- Main power trunk. (This header matches
J12on the Smart Power Filter Board) - I/O Loop (2 cables, in and out, from the Neuron)
- Expansion Bus (from the Neuron)
Output connections for playfield devices¶
- (4) 48V outputs for drivers. 3 are the "H1" fused 48V line and 1 is the "H2" fused line
- (3) 12V high current outputs, for expansion boards (LEDs and servos) and other 12V devices
- (4) 12V low-current fused outputs for opto emitter LEDs
Benefits¶
- Quickly disconnect and remove the playfield from the machine. Just unplug 4 cables.
- Build your playfield not in your cabinet.
- No need for separate power distribution blocks.
- Helps ensure proper wiring and best practices are followed.
- Easily swap playfields between cabinets.
Connectors Housings Needed¶
| Qty | Pins | Size | Description |
|---|---|---|---|
| 1 | 9-pin | 0.156" | 48V/12V power in |
| 4 | 4-pin | 0.156" | 48V/12V power out |
| 3 | 3-pin | 0.156" | 12V high current out |
| 4 | 3-pin | 0.100" | 12V low current out |
Specifications¶
- 12V low current outputs (0.100") support 2.5A combined total. 22 gauge wire is the minimal recommendation.
- 2.5A self-resetting fuse (soldered to the board) protects the 12V low current outputs. Fuse is Bourns MF-MSMF250/16X or equivalent. (Data sheet)
- 0.156" headers support 7A per pin. 18 gauge wire or larger is recommended.

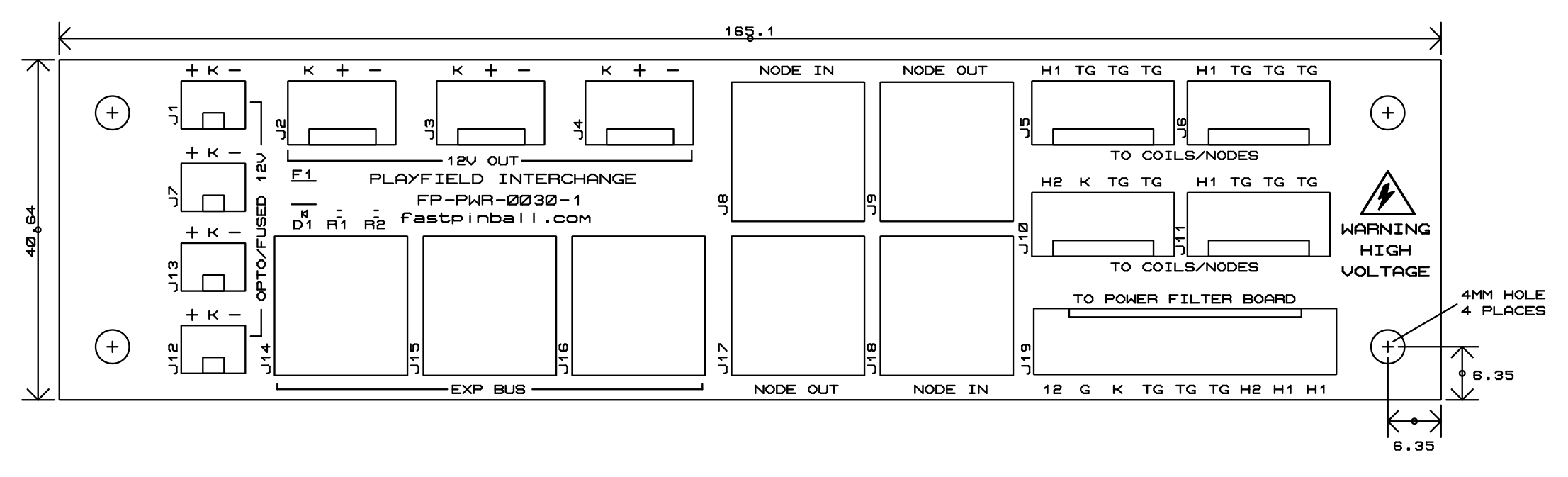

Mechanical Diagram¶
Dimensions are in mm
Wiring Guides¶
